Patented Rotor Blade Adjustment
Similar to large wind turbines, the rotor blades of all Superwind generators are automatically adjusted above the nominal wind speed, and the aerodynamic loads are limited directly at the rotor. High forces on the structure are avoided, significantly increasing safety and reliability. At the same time, a Superwind continues to generate full power well above the nominal wind speed: situations in which other wind turbines have to be shut down.
The adjustment mechanism is maintenance-free, fully protected and integrated into the hub. The purely mechanical operation works reliably even in the event of external malfunction and keeps the wind turbine in a safe operating state, independent of electronic components.
Star Hub
Star Hub is the rotor hub design of our current wind generators. The patented rotor blade adjustment works fully automatically at high wind speeds, regulates the output above the nominal wind speed and limits the load on the generator. The new star synchronisation of the rotor blades makes all Superwind turbines more resistant to strong winds and turbulence compared to older technologies.
Damped wind tracking
The wind vane tracking system is designed to reliably turn the wind turbine into the wind as soon as there is sufficient wind to generate electricity. Superwind generators are equipped with a damping system to ensure that they always track into the wind, even in turbulent locations. This damping is a unique feature of our wind turbines. Stability in the wind is essential for efficient power generation.
Coordinated overall concept
Because we develop our systems in-house, all components are perfectly matched. The electric generator, for example, is precisely matched to the aerodynamics of the rotor and delivers charging current even at low wind speeds. Designed as a brushless synchronous machine with neodymium magnets, the generator has outstanding efficiency across the entire power range.
Rotor blades
Hand-laminated GRP-CFRP composite rotor blades further enhance robustness and improve control characteristics.

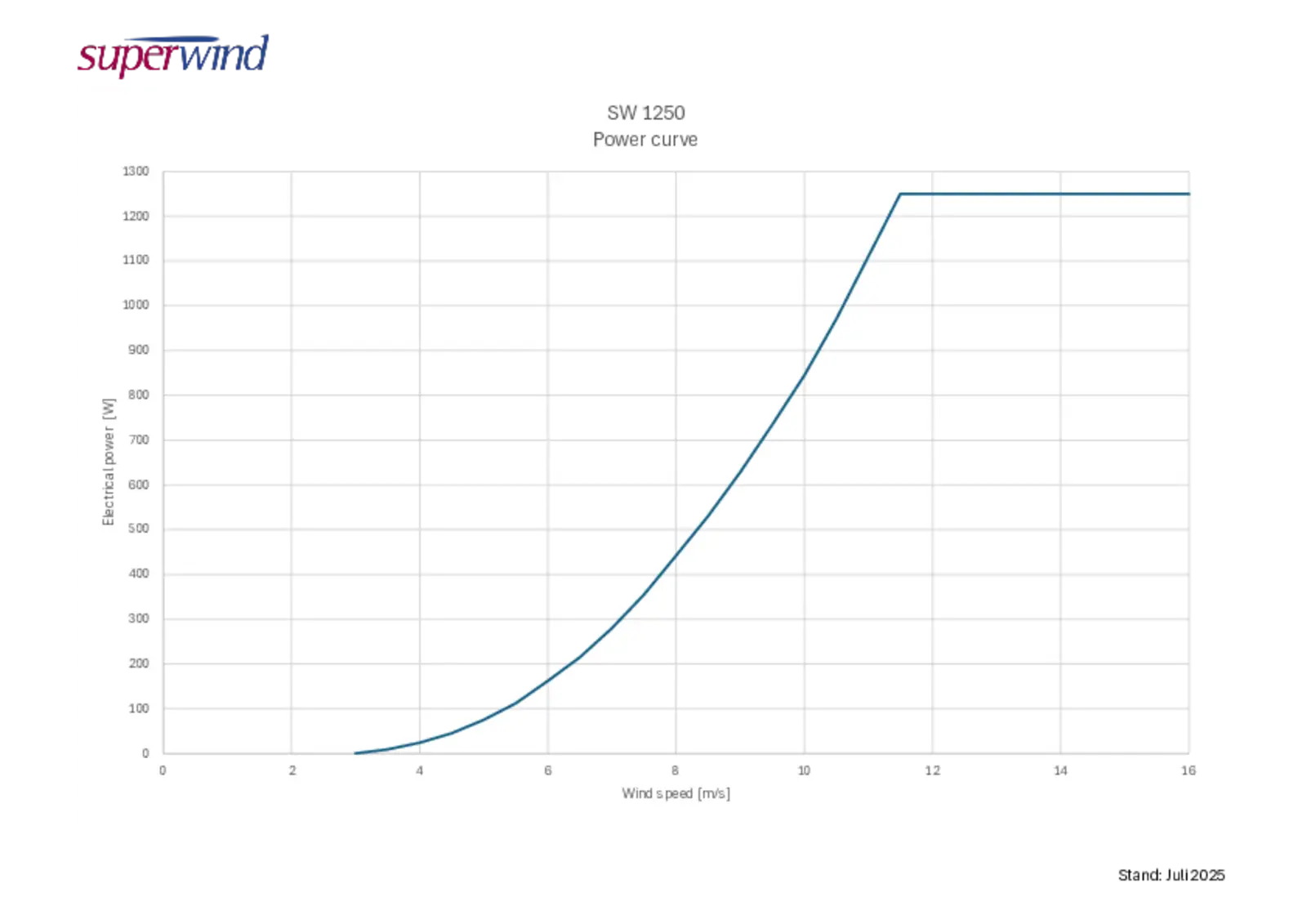

| Rated power | 1250 W | Nominal voltage | 24 V DC or 48 V DC depending on model |
| Rated wind speed | 11,5 m/s | Speed control | Rotor blade pitch control |
| Operating range | 3,5 m/s - 35 m/s (unbraked) | Power control | Rotor blade pitch control |
| Survival wind speed | 50 m/s (braked) | Break 1 | Generator short circuit |

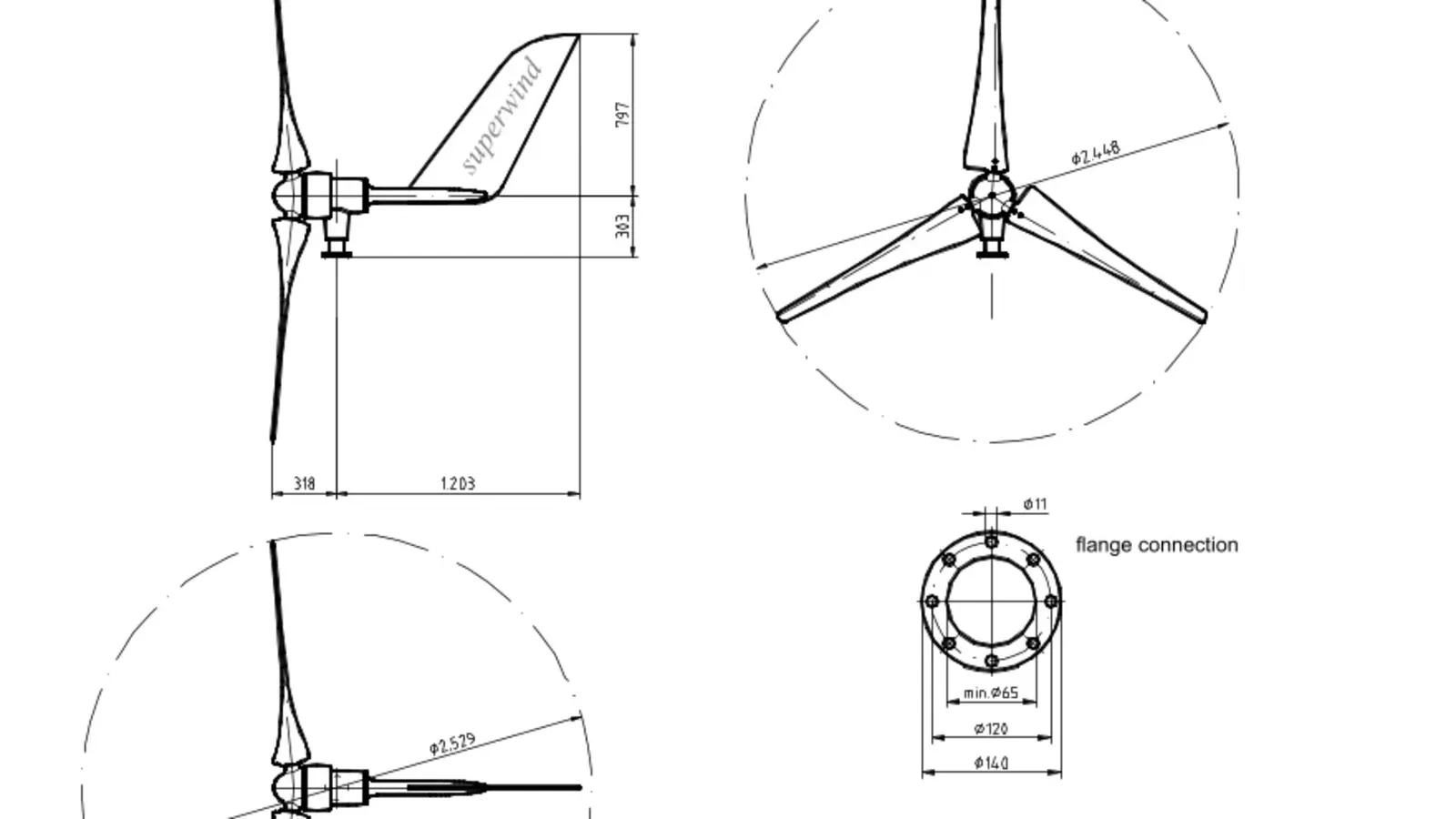

| Rotor diameter | 2,4 m | Break 2 | Disc brake |
| Rotor blades | 3 | Total weight | 45 kg |
| Rotor blade material | GFK/CFK hand-laminated | Rotor thrust, operating | 190 N |
| Rotational speed | 300 – 600 rpm | Rotor thrust, extreme gust | 1700 N |
| Generator | Permanent magnet, 3-phase; Neodymium magnet |
Please use our contact form if you would like further information or a quote.
